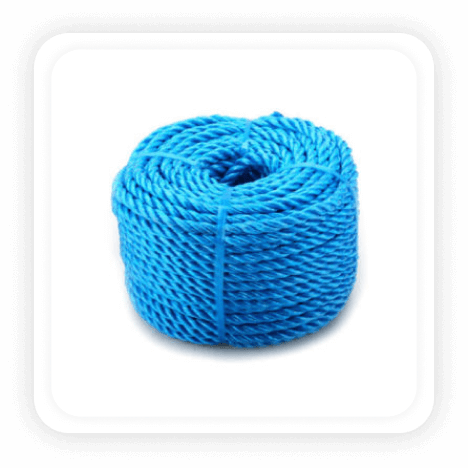

Polypropylene Film Rope – Shrimad Gokul

Polypropylene Film Rope

Polypropylene Film Rope

Category Ropes & Twines

The minimum breaking load (MBL) should never be considered as the safe working load of the rope.
Breaking strength quoted relates to the new dry ropes in soft lay construction. In wet conditions these values may be lower.
Please contact us for information regarding long lengths, special colours and different packing.

Tolerance:	Up to 14 mm = + / – 8% » 16mm & above = + / – 5%
Coil Lengths:	These ropes are available in 100/200/300 mtrs or yards or 300 / 600 / 1200 ft. (Long lengths are available on request.)
Colours:	Aqua Green, Yellow, White, Grey

Long Description

Characteristics :

Light Weight
Positive buoyancy (floats) & doesn’t absorb water
Long Lasting
Inert to Chemicals
Controlled Elongation

Applications 3 Strand :

Hoisting, Rigging, Safety & All purpose lines
Mooring & Barge lines
Ship docking, Alongside towing & Tie-downs/hauling

SIZE (DIAMETER)		WEIGHT		MINIMUM BREAKING STRENGTH
SIZE (DIAMETER)				MINIMUM BREAKING STRENGTH
mm	Inch	Lbs/100 ft	Kgs/100 mts	Kgs	Lbs
4	5/32″	0.5	0.74	214	472
6	1/4″	1.14	1.7	602	1327
8	5/16″	2.02	3	1060	2337
10	3/8″	3.05	4.55	1560	3439
12	1/2″	4.43	6.59	2210	4872
14	9/16″	6.05	9	3050	6724
16	5/8″	7.79	11.59	3770	8311
18	3/4″	9.95	14.8	4810	10604
20	13/16″	12.1	18	5800	12787
22	7/8″	17.47	26	8130	17924
24	1″	23.85	35.5	10700	23589
28	1.1/8″	27.15	40.46	12220	26940
32	1.5/16″	30.91	46	13500	29762

`
